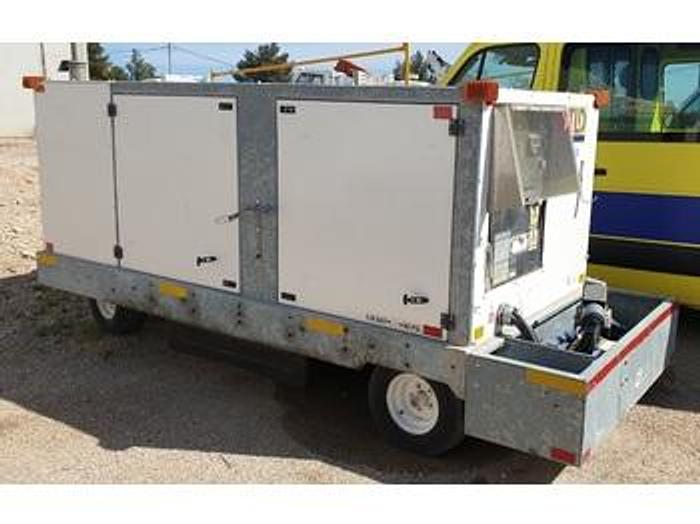

2007 Ground power unit GPU/120 KVA 4120-T-CUP
2007 Ground power unit GPU/120 KVA 4120-T-CUP
Contact us for price
Location:Tremblay-en-France, France
orCall +33 640 821 141
Description
The TLD GPU-4120-E-CUP 400 Hz Ground Power Unit features a brushless revolving field generator, rubber torsion axle-mounted chassis of rugged galvanized steel construction with fifth wheel steering and powder-coated sheet metal panels. The unit meets U.S. and EURO emission standards.
The GPU-4120-E-CUP is available with an optional 28.5 volts DC power output package, part number GPU-4120-E-CUP-28. The 28V option creates outputs for a 120 kVA 400 Hz AC and 28V DC combination aircraft ground power supply.
24 volt starting motor
Heavy-duty spark arrestor/silencer
Pusher type fan
Full-flow lubricating oil filter
Dry-type air cleaner
(2) 12-volt batteries
Full flow fuel filter
De-aerator tank
Low coolant shutdown
400 Hz 115/200 volts nominal
+/- 15% adjustable
3 phases
4 wire wye-connected
Grounded neutral
Revolving field
Brushless
Self-cooling
Single bearing
Brushless rotating rectifier assembly
Directly connected to the engine
Specifications
Manufacturer | Unknown |
Year | 2007 |
Condition | Used |
Additional | units available2 |
Over frequency | 420 Hz in 5 seconds |
Under frequency | 380 Hz in 7 seconds |
Over voltage | 130 volts in 2 seconds |
Under voltage | 100 volts in 7 seconds |
Overload | 125% of rated load for 5 minutes |
