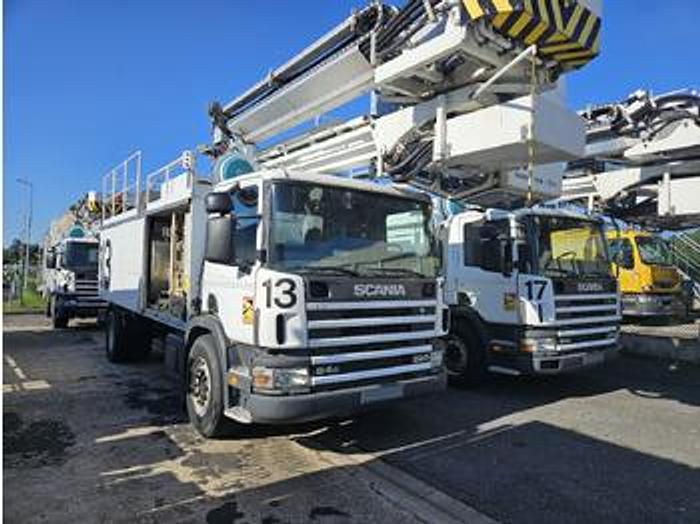

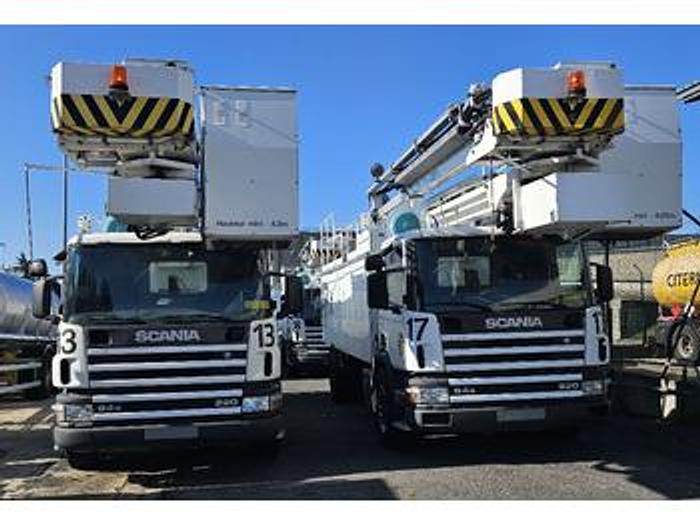

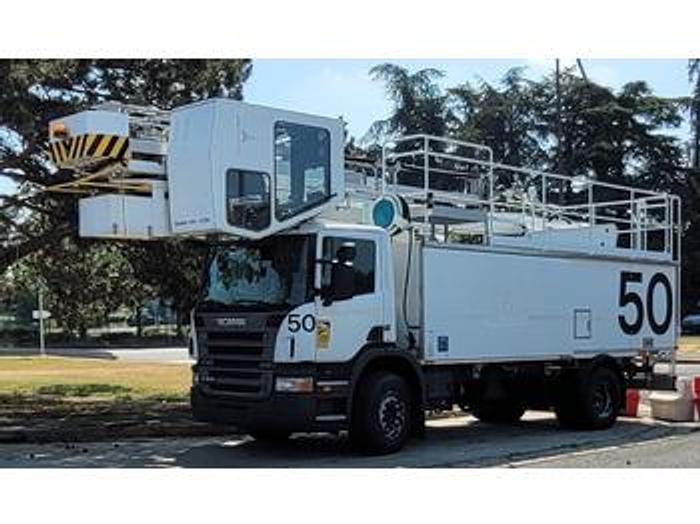

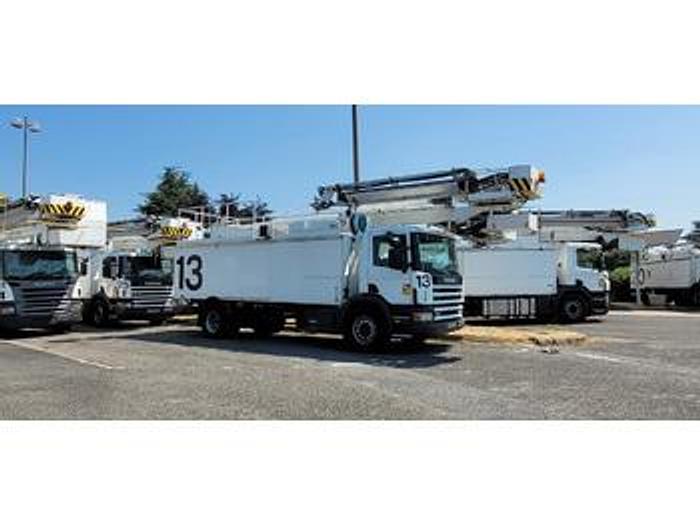

2000 Vestergaard Elephant Beta 12

Tank 1: 4000 litres Labelling*: Water

Tank 2: 3000 litres Labelling*: Type I

Tank 3: 1000 litres Labelling*: Type II

CHASSIS: Scania 4 x 2

TYPE: P94 GB 4 x 2 NZ

WHEELBASE: 4900 mm

BATTERY VOLTAGE: 24 v DC

TRANSMISSION: GR 801 8-speed

LEFT/RIGHT STEERING: Left

REVERSE ALARM: Yes

COLOUR CABIN, RAL: RAL 9016 white

COLOUR FRAME, RAL: Std. grey

Proportional mixing system with key switch controlled selections

- Switch is located in Panel 2 (machine room) and active when “Deicing“ is selected

- Possible fluid mix selections: 40%, 45%, 50%, 55%, 60%

- Tank 2 filling coupling labelled with large

RED TYPE I placard

- Tank 3 filling coupling labelled with large

GREEN TYPE II placard

- Pin 1 and pin 7 in top level sensor plug connected.

- Plug for top level sensors shall be mounted on left side 300 mm in front of filling coupling for tank 1

ˆ - Cable from top level plug to junction box for easy access.

- Drain connections for tank 2 and tank 3 provided with couplings
